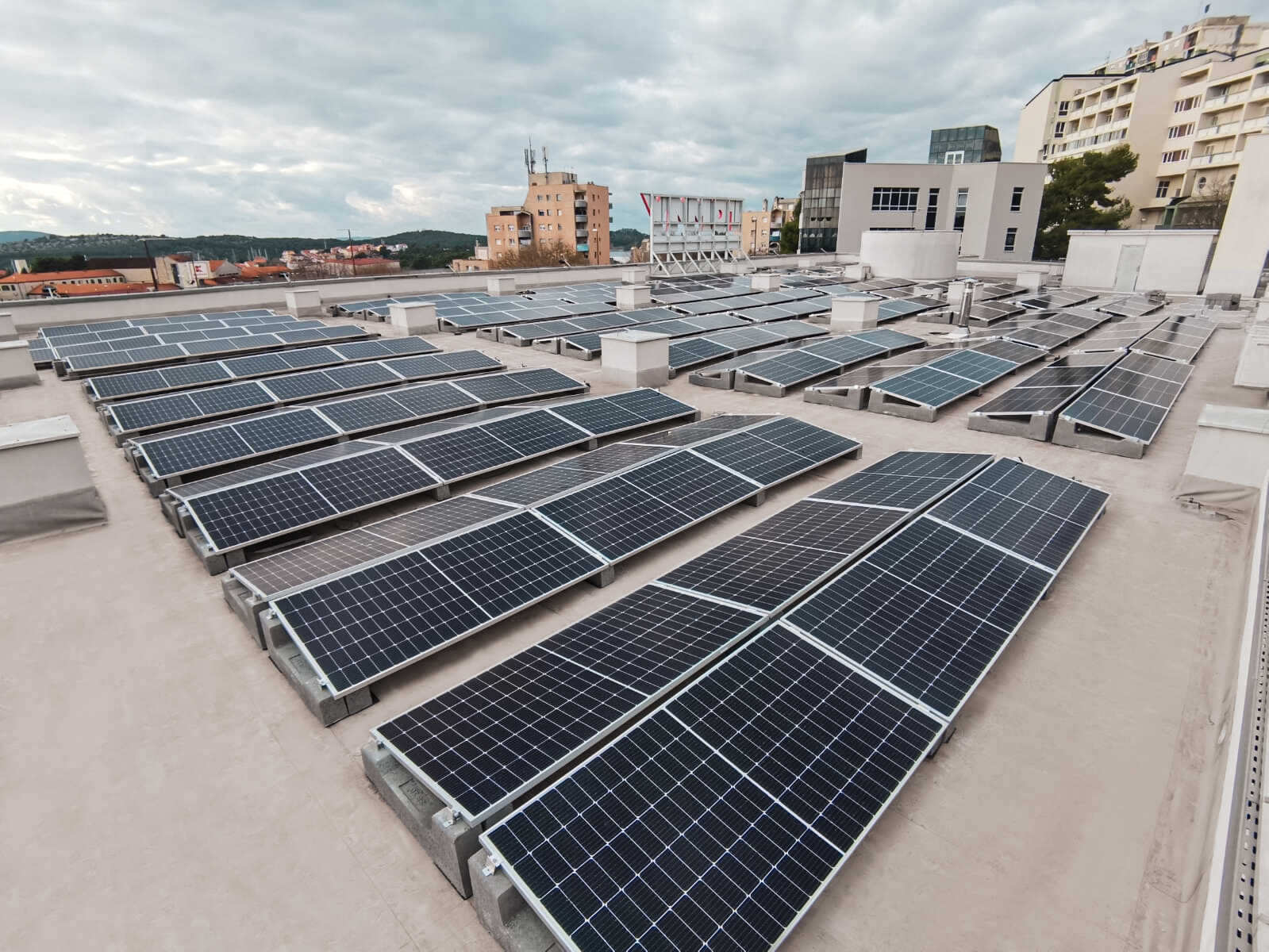

Sun Ballast 10 ° fixing system is realized of vibrated and reinforced concrete and allows an inclination of 10 °. The material with which the ballast is made has an exposure class XC4 as well as a resistance class of C32 / 40.
It performs both the function of support and ballast to the photovoltaic panels and must not be fixed on the roof but only supported. During installation, a rubber protective sheath is placed between the support and the cover.
The photovoltaic panels are hooked onto the support equipped with an M8 bushing by means of special central clips and the orientation of the module can be horizontal or vertical.
BALLAST 10°
Suitable for windy areas
100% recyclable product
Available colours
BALLAST 10°
Art. 23010
Application
Any type of flat or low-pitched roof with up to 5° slope, on the ground, on hard court with inert material or on paving
Module inclination
10°
Quantity per pallet
10
Ballast weight
60 Kg
Pallet dimensions
70 cm x 98 cm h = 58 cm
Distance between panels
From 60 cm to 100 cm
Total pallet weight
600 Kg
Orientation of the PV module
Horizontal, Vertical
PV panel size
Standard 1650x1000 panel or similar.
Download Technical Sheet
0.29 Mb
10° BALLAST
Can I have the details about the pallets?
Of course, please send an email to logistica@sunballast.com including the reference number of your order.
Is it possible to ground your system?
Yes, it can be grounded by means of connecting 2 panels as explained in the execution standard or using accessories (e.g. terminal and central braces) certified for grounding.
How long is your buckle?
Our buckle has a screw thread ≈ 3 cm long.
Can I install rails on your ballasts?
Yes.
Can I install solar thermal panels on your ballasts?
Yes, the technicians will suggest you the best solution after receiving the technical sheet and the assembly instructions of the panel.
Can I install the panels glass-glass?
Yes, by using the rails.
Is it possible to have a ballast produced according to our dimensional requirements?
Yes it is, we also produce custom ballasts to meet our clients’ needs.
Can I have black ballasts?
Yes, the minimum order is 1 pallet.
How long does the shipment take?
As soon as we receive the complete order (i.e. signed order, with delivery address + bank transfer report) we set shipment and delivery in 2/3 working days for northern Italy, 3/4 working days for central Italy, 4/5 working days for southern Italy/islands, 5/6 working days abroad.
Please note: for orders over €1500 we also have to wait for the credit to be transferred on our bank account.
Can you deliver the material on a vehicle with tail lift, as we do not have the equipment to unload the pallets?
Of course, we can send you a vehicle with hydraulic tail to unload the pallets.
Please note: we can do it up to 15/20 pallets; for larger amounts we supply a semi-truck, which is not provided with hydraulic tail.
Is there iron in the ballast?
Yes, in our ballasts there are 1-2 iron bars that enhance the resistance in handling and transport; should our ballast be damaged during the shipment (i.e. minute cracks occurring in the surface), it can be used anyway.
Is the buckle in the ballast in stainless steel?
No, it is made of zinc plated steel, as it permits to redo the thread if it strips while screwing (using the male screw M8)
Is it possible to drill the ballast?
Yes, our ballast can be drilled to insert Ø 9 mm expansion buckles. We recommend you to drill the ballasts in the central part.
What can I do if the buckle is oxydised?
Apply lubricant (e.g. WD40) or grease on the buckle.
Can I install the ballasts on any kind of flat surface?
Yes, our ballast can be installed on gravel, green roof, tarmac, concrete, ground.
What is the maximum tilt of the roof on which your system can be installed?
It can be installed on any roof with a maximum tilt of +5° or -5°.
